Kyosho Legendary Series

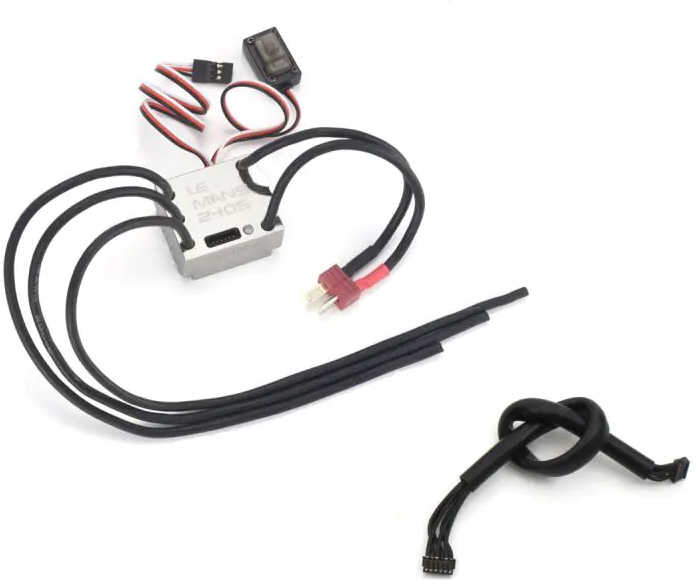

This ESC is ideal for use with the Le Mans 240S brushless motor and features a completely new fanless style with all six FETs placed on the bottom side of the aluminum case in the form of heat-dissipating fins to dissipate heat from the underside. The hard aluminum case, which is durable and heat-dissipating, is nickel-plated and laser-engraved with the “LE MANS 240S” and “KYOSHO” logos.14 All gauge silicon wires are black. The gauge silicon wires are all black for a visually appealing design. The battery plug is equipped with a super plug, and the capacitor, which is troublesome to wire, is built into the case for a compact design. Six parameters can be easily set by simply operating the set key without using a program card.
The approximate length of the sensor cable is as follows (varies depending on the mounting position of the ESC).
TF-7/FAZER/Plasma F1 → 100mm
- Plasma Lm/Plasma Ra/Gambade R246 → 150mm
- Optima/Tomahawk → 170mm
- Scorpion/Beetle → 190mm
INCLUDES 200mm Sensor Cable
Part Number: 37034
