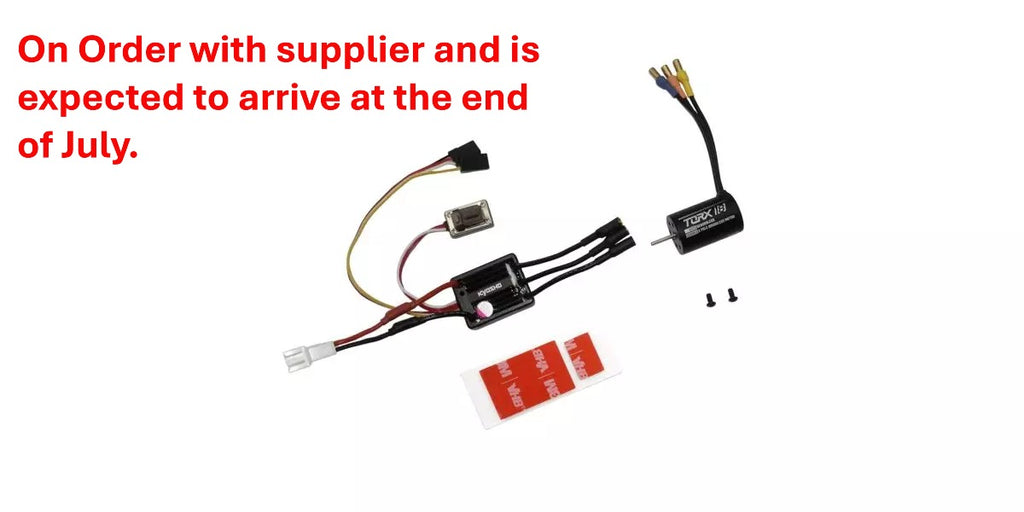

ON ORDER WITH SUPPLIER AND IS EXPECTED TO ARRIVE AT THE END OF JULY.
Limited stock so either contact us to reserve with deposit or simple pay in full

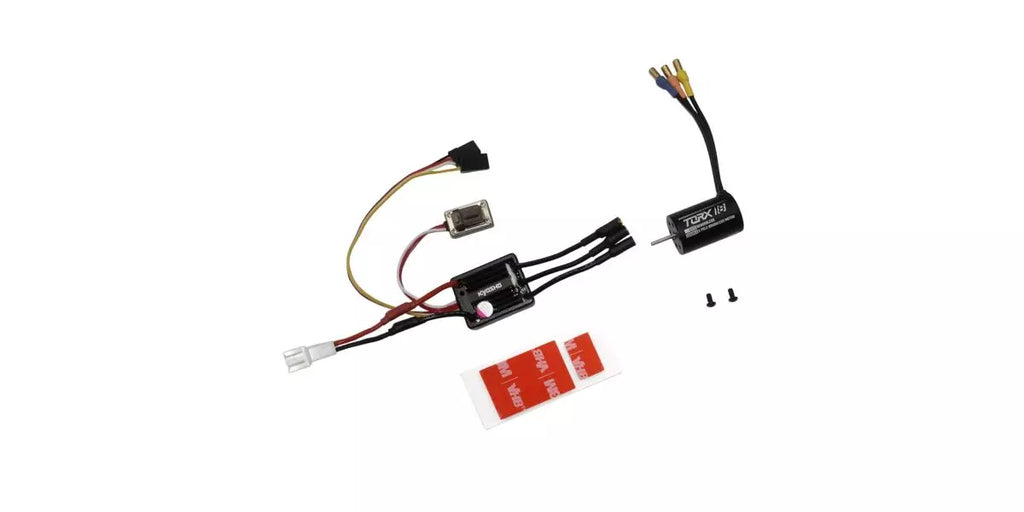

Kyosho Moto Hanging on Racer combo Brushless Motor and ESC
※This technical data shows the performance of the ESC and motor.
Not all of them are compatible with the Hang On Racer.
ESC
KYOSHO SPEED HOUSE BRAINZ 18
Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V ~ 10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Size: 33.4mm(L) x 26.8mm(W) x 15.1mm(H)
Continuous maximum current: 30(A)
BEC Output: 6V / 2A
Weight: 38.5g
Recommended motor size: 270–390 class (up to 8000KV with 2S LiPo / up to 4500KV with 3S LiPo)
Protection function: Low voltage cut off function / Overheating protection function
Motor
KYOSHO SPEED HOUSE TORX 18
KV: 5000(rpm/V)
Input Voltage: Ni-MH Battery: 6〜9 cell (7.2V〜10.8V) or Lipo Battery: 2〜3 cell (7.4V〜11.1V)
Weight: 42g
Specifications:
Continuous / maximum current: 25A/100A
Input: 2-3 cell LiPo or 5-9 cell NiMH
resistance: 0.003Ω
BEC Output: 1A/5V
Part number: GPW23
